Salesforce setup

Use this checklist to deploy FlowIframeEmbed in a Salesforce org and expose a flow on a public Salesforce Site.

Prerequisites

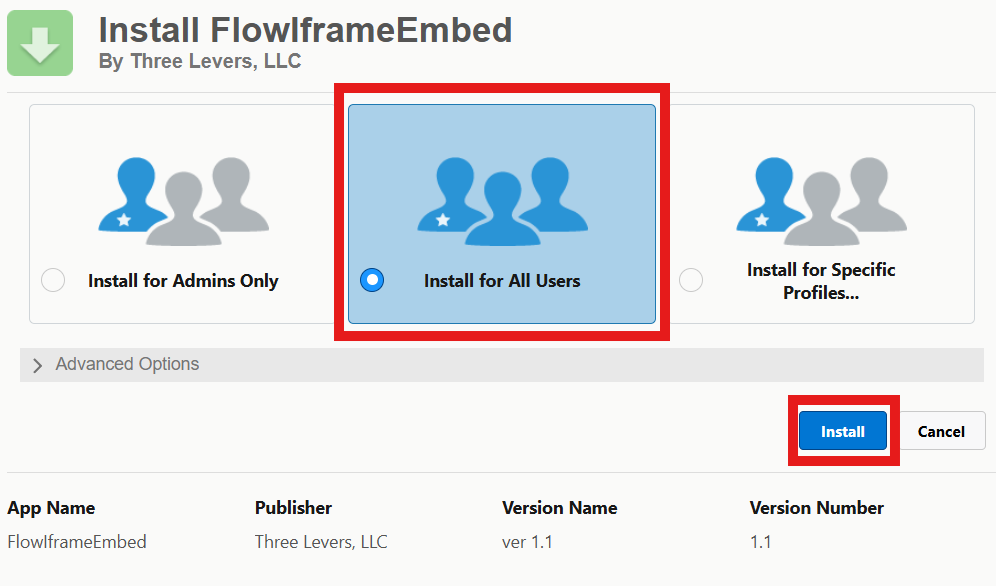

FlowIframeEmbed package is installed (or equivalent metadata deployed).
You know the Flow API Developer Name to run (for example, Check_In_Dispatch).
You have an external page ready to host the iframe/widget.

1) Prepare the flow

Create or open the target Screen Flow.
Activate the flow.
If you pass URL inputs, create Text input variables with API names matching planned params (for example recordId, source).
Test in Flow Builder to confirm it reaches FINISHED.

2) Expose the Visualforce page on a Site

Go to Setup -> User Interface -> Sites and Domains -> Sites.
Create a site (or reuse an existing public site).
Add the Visualforce page FlowIframeEmbed to the site.
Publish/activate the site.

Your iframe base URL should look like:

https://your-domain.force.com/site-prefix/FlowIframeEmbed

3) Grant guest user access

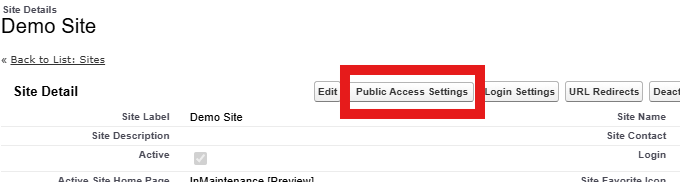

From the site’s Guest User Profile:

Enabled Visualforce Page Access: add FlowIframeEmbed.
Enabled Apex Class Access (if flow uses Apex actions): add required classes.

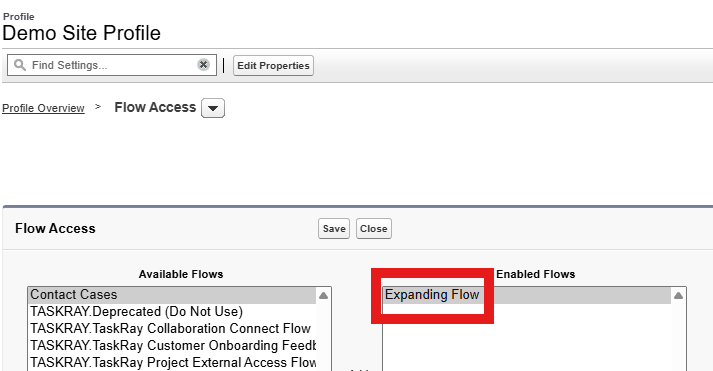

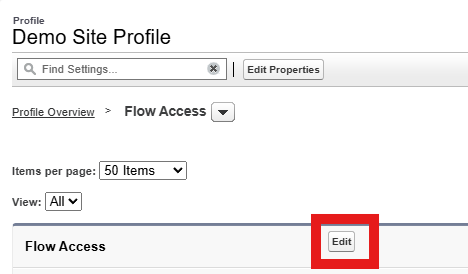

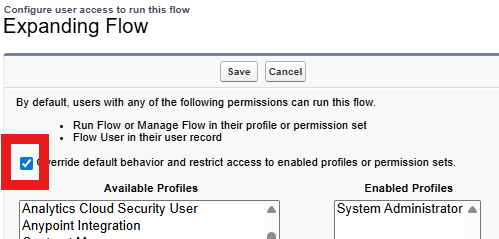

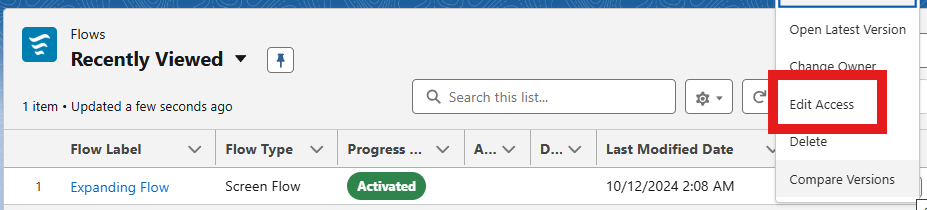

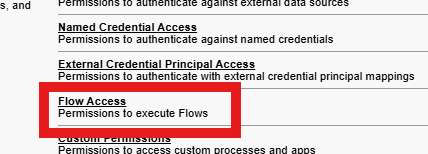

Flow access: ensure guest can run the flow and referenced resources.

If flow fails only for guest users, this profile is the first place to check.

4) Configure framing and browser security

Configure Salesforce clickjack/CSP settings for your external domain.
If using JavaScript widget, set allowedOrigin to Salesforce site origin:

window.tlFlowEmbed = {
  embedUrl: 'https://your-domain.force.com/site-prefix/FlowIframeEmbed',
  flow: 'Check_In_Dispatch',
  allowedOrigin: 'https://your-domain.force.com'
};

This restricts resize messages to your Salesforce origin.

5) Build the iframe URL correctly

Required:

flow=<Flow_Developer_Name>

Optional:

endUrl=<https URL> redirects parent window on FINISHED
inputVars=<comma separated allowlist>
extra params that match names in inputVars

Example:

https://your-domain.force.com/site-prefix/FlowIframeEmbed?flow=Check_In_Dispatch&endUrl=https://clientsite.com/thanks&inputVars=recordId,source&recordId=001xx0000001234&source=web

6) External page embed

Use either:

JavaScript widget for URL building + dynamic height.
Manual iframe plus postMessage listener for { frameHeight: number }.

7) Validation checklist before go-live

Site URL loads publicly without Salesforce login.
Flow renders in iframe on client page.
Dynamic resize works (no inner scrollbar cutoff).
Flow inputs receive expected values.
endUrl redirect works on completion.
Guest user can complete intended flow paths.
Fault path tested and shows safe user message.

Common issues

Blank iframe / refuses to display: framing/clickjack/CSP missing for host domain.
Flow does not start: wrong flow value (must be API Developer Name).
Inputs missing: inputVars omitted or names don’t match flow variable API names exactly.
No redirect: flow never reaches FINISHED or endUrl missing/invalid.
Works for admin, fails for public users: missing guest profile access.
