OpenAPI import

Per-service specs

Each provisioned dataset exposes its own OpenAPI (Swagger) description. Lookup, extract, and proxy bridges may each use a different URL—import only the spec for the layer you are wiring. The same API key authenticates every import; you choose the service in the Swagger URL and in each Flow call.

Integration	Typical Swagger URL
Lookup / extract (boundary service)	`https://apis.threelevers.com/gis/v1/swagger.php?service={YourServiceName}`
Proxy (e.g. CensusGeocoder)	`https://apis.threelevers.com/gis/v1/proxy/swagger.php?service=CensusGeocoder`

Replace {YourServiceName} with the exact name from Three Levers onboarding—not example names from demos unless that is your licensed service.

Prerequisites

Salesforce setup completed through permission set assignment (Named Principal + custom setting API key).
Package Named Credential Three_Levers_API available in the import wizard.

Salesforce External Service workflow

Full step-by-step with screenshots: Salesforce setup — Steps 5–6.

Summary:

Setup → External Services → New External Service → From API Specification.

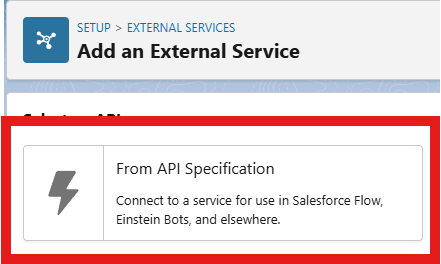

Add External Service: From API Specification

Provide Registration Details — Absolute URL, Three Levers API Named Credential, Swagger URL with your service name.

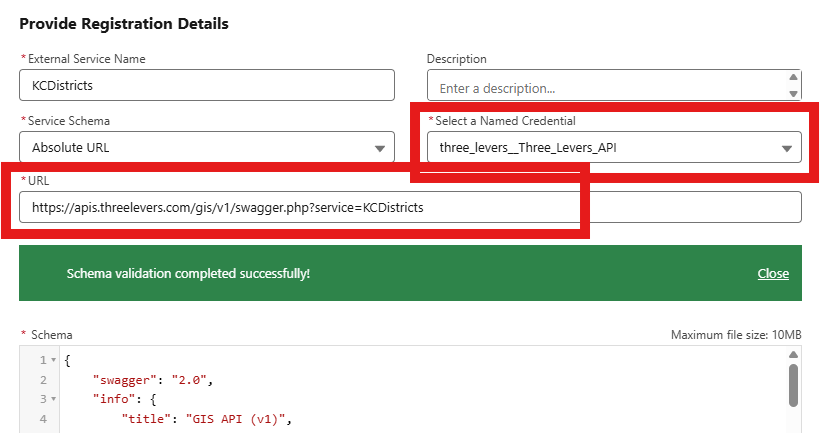

External Service registration: Named Credential and Swagger URL

Select Operations — enable getLookup.

Select Operations: getLookup

Save and wire the generated action in Flow (for example Get Lookup under External Services).

Security definition in the spec

Imported specs declare header ApiKey. At runtime Salesforce sends the key from the External Credential Named Principal—you do not embed the key in the OpenAPI URL or Flow.

Multiple services on one API key

Create one External Service registration per service name (one Swagger import each). Reuse the same Named Credential and same API key for all imports—districts, routes, and proxy services can coexist on one key.

Example Flow action names when an org has two boundary layers (illustrative):

Acme_Districts.getLookup
Acme_Routes.getLookup

After import

Generated types reflect that service’s schema—property names differ between layers.
Optional fields may appear with companion _set flags in Flow; map only the fields you use.
Success bodies may appear directly on the action output or under Code200—confirm responseCode 200 in Flow debug.

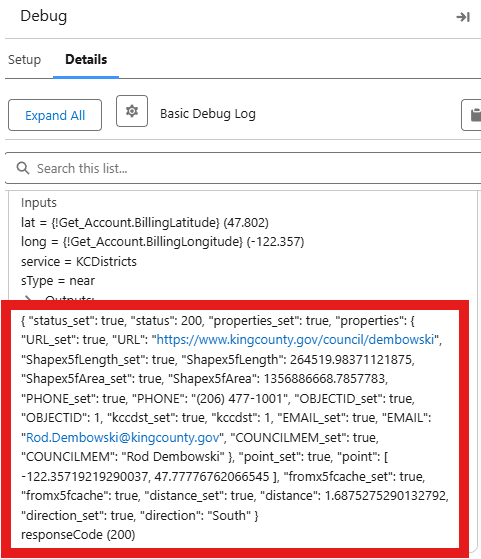

Flow debug: successful lookup (example layer)

Map component vs External Service

Use case	Configuration
Flow / Apex lookup	External Service from `swagger.php?service=...`
Hosted map overlay	Component JSON `service` + `serviceUrl`; token via `MapTokenService` — Hosted map
