WordPress

Use the Lightning Flow iFrame plugin to embed Salesforce Screen Flows on WordPress pages via shortcode.

Download: WordPress.org plugin directory · GitHub repository

Quick start

Install and activate the plugin from WordPress.org or zip wordpress/lightning-flow-iframe/ from the GitHub repo.
Complete Salesforce setup and expose FlowIframeEmbed on a Site.
Go to Settings → Lightning Flow iFrame and configure defaults:
- Default iFrame URL — https://your-site.force.com/site-prefix/apex/three_levers__FlowIframeEmbed (namespaced VF path; see Salesforce setup)
- Default Flow Name — Flow API Developer Name (e.g. Check_In_Dispatch)
- Default End URL — optional thank-you page (e.g. https://yoursite.com/thanks)
Add to any page or post:

[Lightning-Flow-iFrame]

Settings

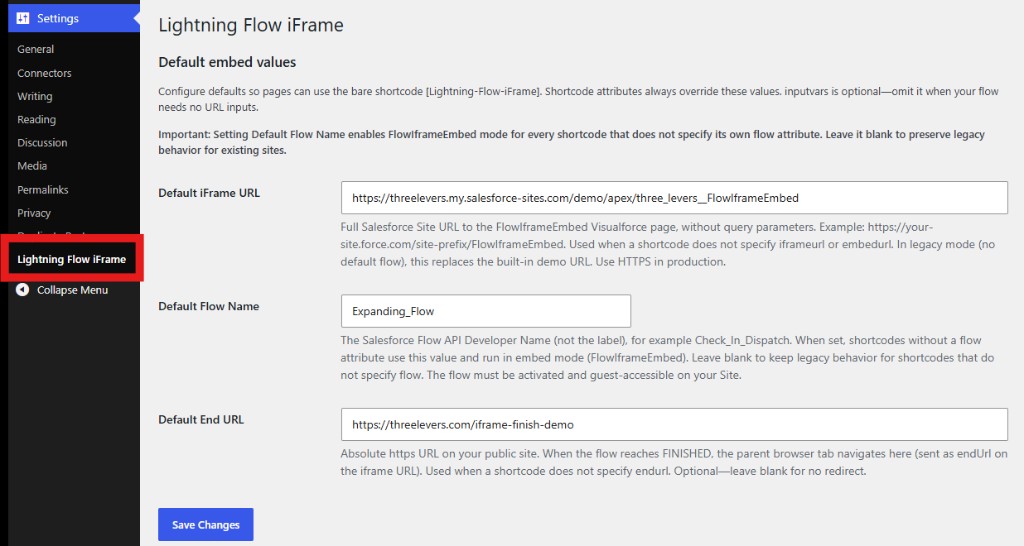

WordPress Settings → Lightning Flow iFrame: default iFrame URL, flow name, and end URL

Setting	When to use
Default iFrame URL	Avoid repeating the Salesforce Site URL on every page
Default Flow Name	Enables embed mode for shortcodes without a `flow` attribute
Default End URL	Redirect parent tab when flow finishes

Leave Default Flow Name blank on sites that still use legacy Visualforce pages without the flow parameter.

Shortcode attributes always override settings.

Optional flow inputs

inputvars is not required. Add it only when the flow accepts URL inputs:

[Lightning-Flow-iFrame inputvars="recordId,source" extraqs="recordId=001xxx&source=homepage"]

Only parameters listed in inputvars are passed (from extraqs or the WordPress page query string).

Shortcode attributes (embed mode)

Attribute	Description	Required	Default
`iframeurl`	URL of public FlowIframeEmbed VF page	Yes*	From settings
`flow`	Flow API Developer Name	Yes*	From settings
`endurl`	Parent redirect when flow finishes	No	From settings
`inputvars`	Comma-separated allowlist for flow inputs	No	none
`extraqs`	Manual query params, e.g. `recordId=001xxx&source=homepage`	No	none
`height`	Initial iframe height (e.g. `"75px"`)	No	`"50px"`
`ease`	Ease height adjustment animation	No	`"false"`
`easespeed`	Ease speed in seconds	No	`".2"`
`lazy`	Apply `loading="lazy"` to iframe	No	`"true"`

*Required on the shortcode or in Settings → Lightning Flow iFrame defaults.

Legacy mode

If Default Flow Name is blank and the shortcode has no flow attribute, the plugin uses legacy mode (full parent query string forwarding, endurl lowercase). Existing pages continue to work without changes.

New WordPress sites should configure defaults and use embed mode with FlowIframeEmbed.

Salesforce prerequisites

Complete Salesforce setup before embedding.

Support

WordPress-specific issues: WordPress.org support forum
